Materiality & Assembly: MAM Rio

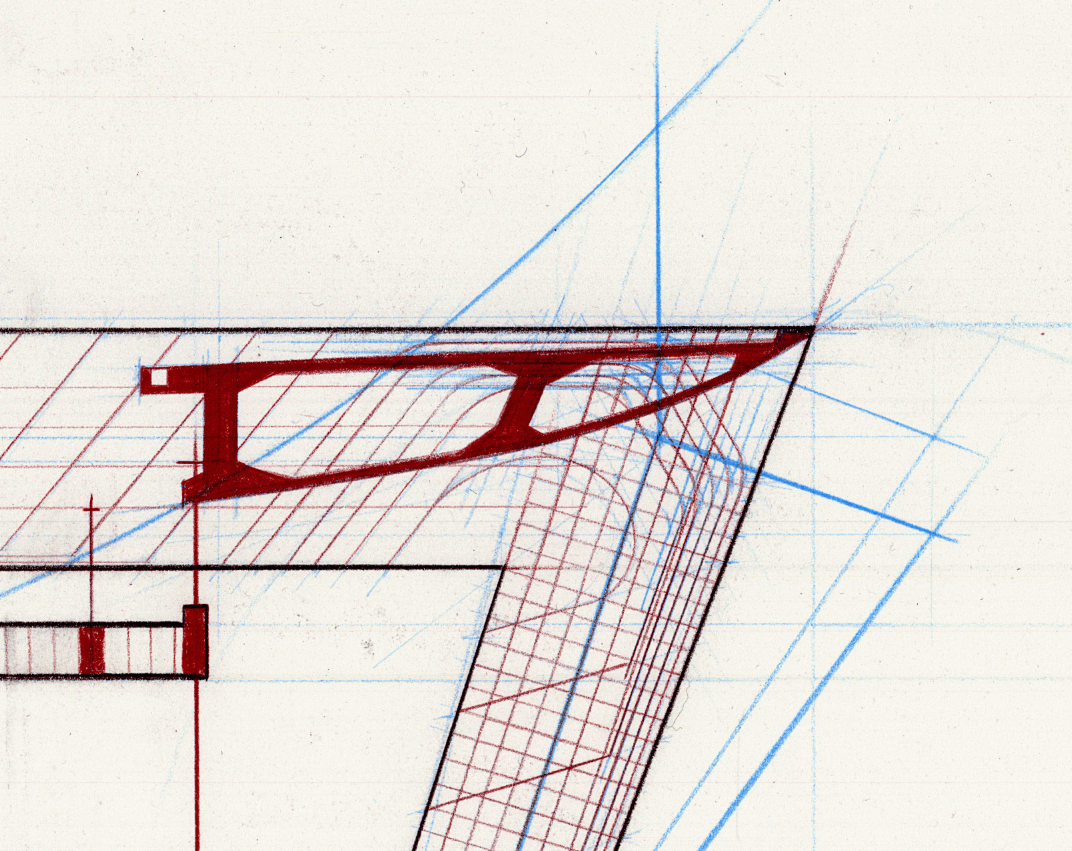

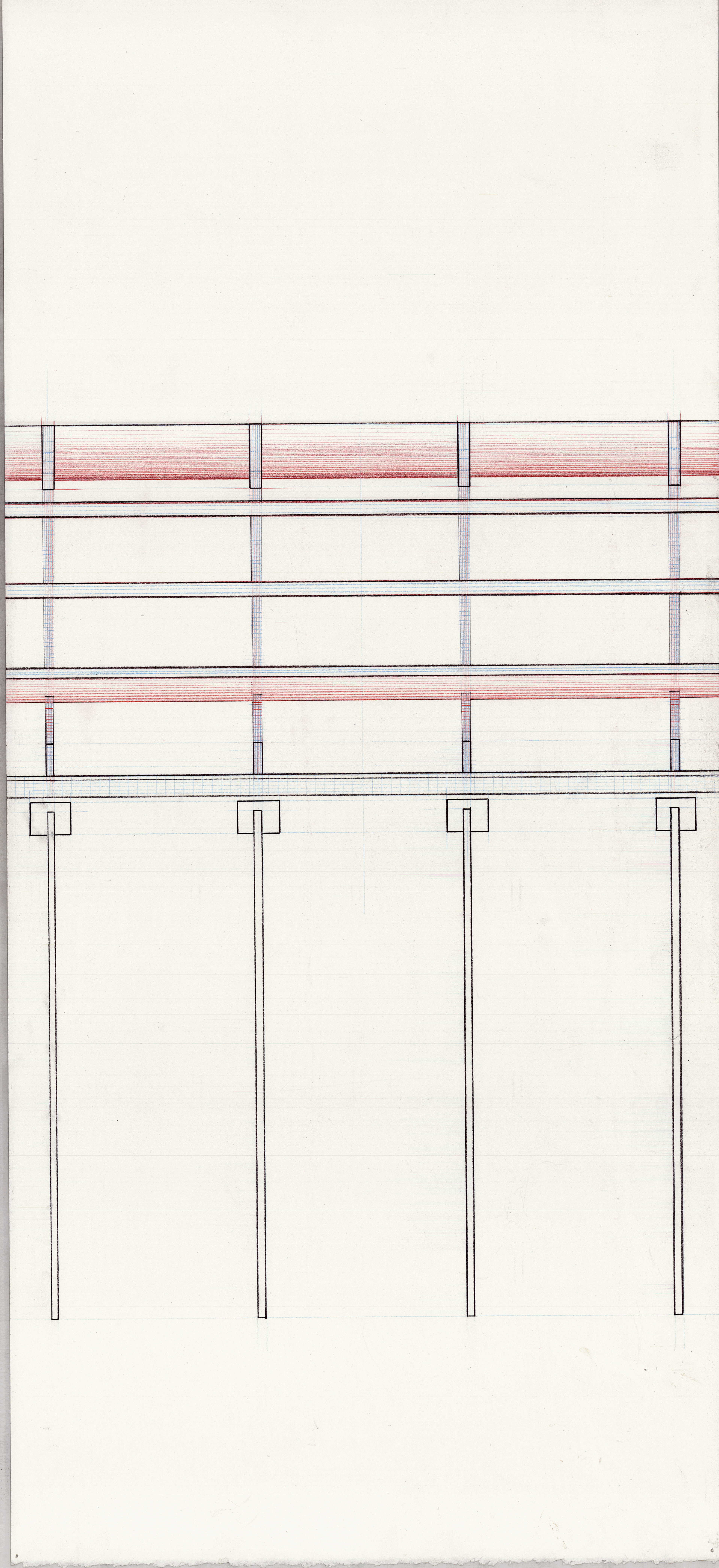

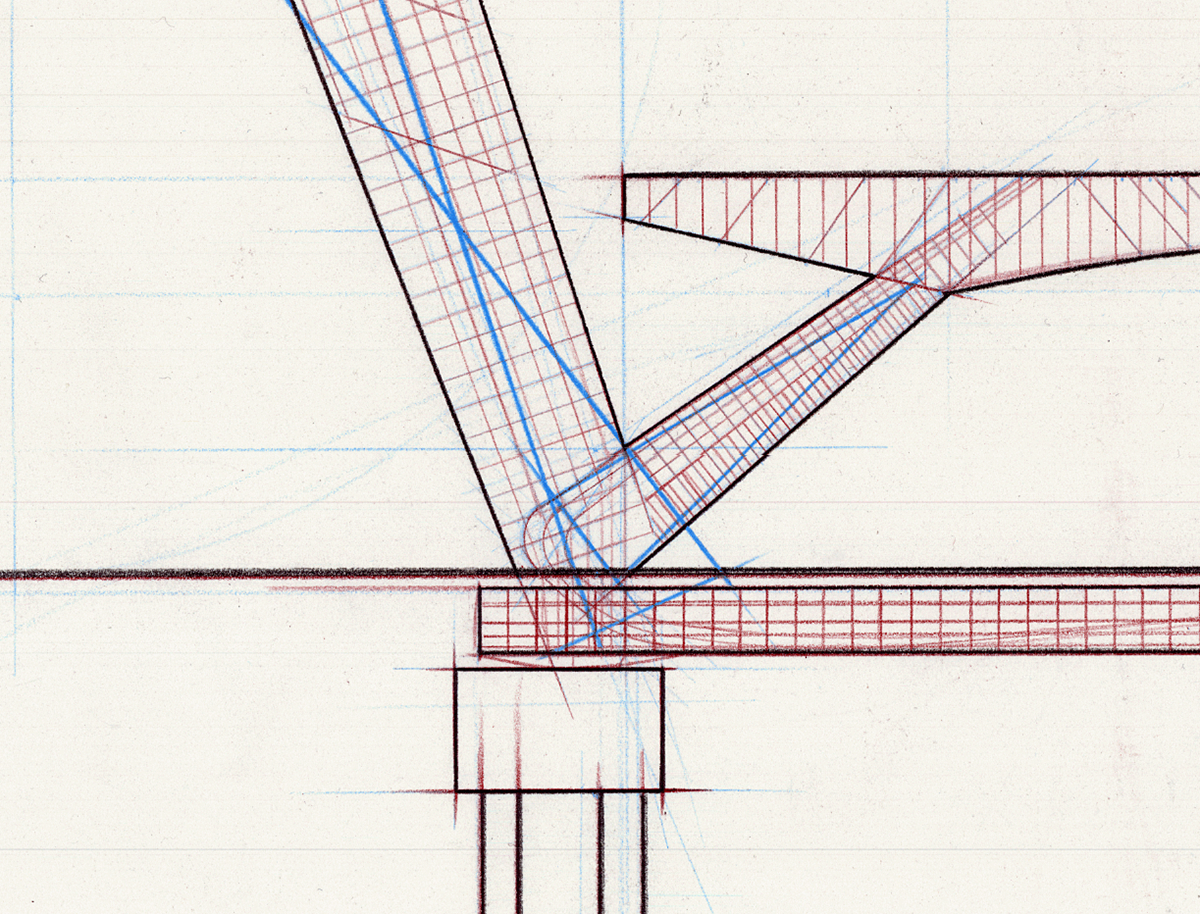

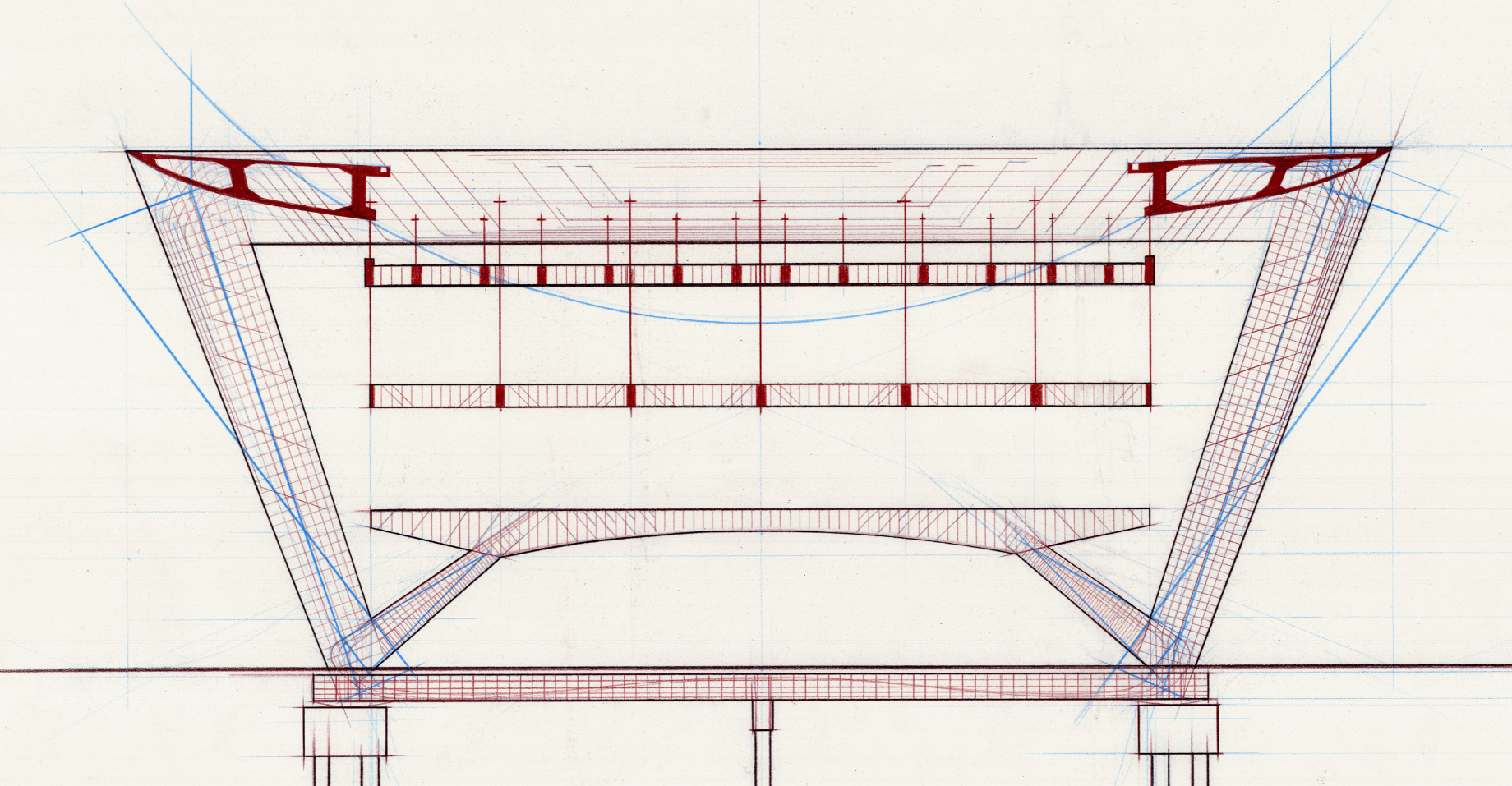

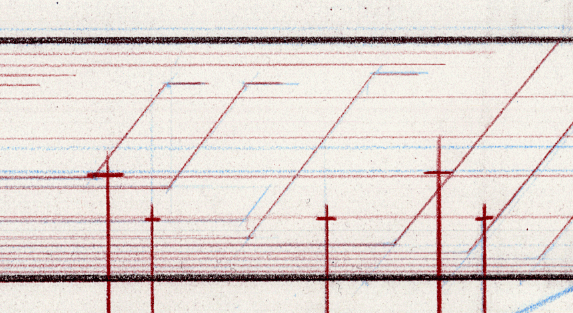

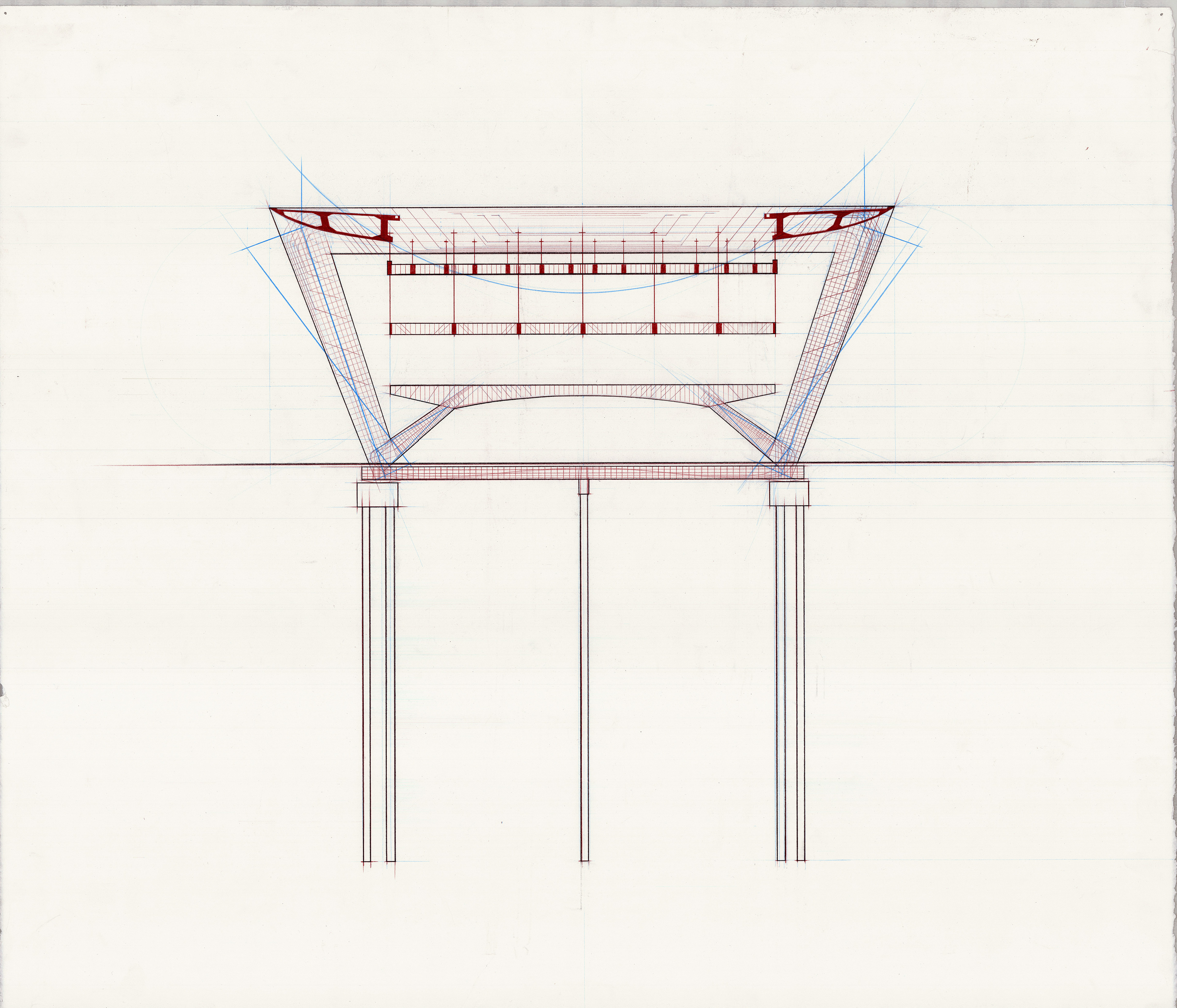

Structural analysis in cross-section of the Museum of Modern Art, Rio. Based on engineering and schematic documents, this drawing depicts one of the repeating concrete forms (and its internal rebar) that suspends/supports the gallery space without internal structural walls.
